40 Slot High Pressure Johnson Wire Screen For Coal / Mine Easy Installation

  • 1
  • 2

Brand Name : Heng Yuan

Model Number : 6-5/8" 8-5/8" 10-3/4"

Certification : ISO,SGS,CIQ

Place of Origin : Anping, Hebei, China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Week

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,128 pcs per 20 ft container

Material : Galvanized Low Carbon Steel

Grade : Q195, Q235 carbon steel

Slot size : 0.5mm, 0.75mm, 1.0 mm, 1.5mm

Diameter : 2 " 3 " 4 " 6 " 8 " 10 " 12 " 14 "

Length : 5800mm to fit container

End connection : Welded rings

Package : Woden box Or plastic film in container

Contact Now

High Pressure Profile V Wire Wound Screen Pipe,Slotted Filter Pipe

Product Description:

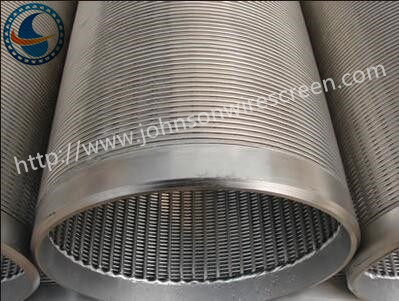

Hengyuan Wound Screen Pipe is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

.

Specification:

Material Low carbon steel galvanized
Grade Q195, Q235
O.D 219 mm
Size 8 "
Slot size 1.0 mm
Length 5.8m
End connection Welded rings
Wire size 118 # (3*4.6mm), 3*5mm or 3*6mm
Support rod Round wire: ø3.8mm,4.0mm, 4.2mm, 4.5mm, 5.0mm
Wire shape V shape wire

Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4, 6, 8, 10, 12 inch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire: 2*3.5mm, 2.2*3.5mm, 3*4.6mm, 3*5mm, 3*6mm.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your need!

Application of johnson screen:

- Separating;

- Sizing;

- Straining;

- De-watering;

- Filtering;

- Drying;

- Water intake;

- Media retention

Characteristics of johnson screen:

- More open area

- Precise openings

- Maximum design flexibility

- Stronger and more durable, economical

- Easier installation and long-term operating etc

40 Slot High Pressure Johnson Wire Screen For Coal / Mine Easy Installation40 Slot High Pressure Johnson Wire Screen For Coal / Mine Easy Installation
